Runtime

This section describes the MMD runtime components of babylon-mmd.

The MMD runtime provides components necessary for applying animations to MMD models and cameras, as well as features to handle various other scenarios.

Types of Animation Application

The way you load and use the runtime varies depending on the format of the 3D models and animation data you're working with.

For example, the most common scenario is loading a PMX model and applying VMD animation. This is handled by default, and we also discuss more complex scenarios.

Before proceeding with the explanation, let's clarify some terms used in this section:

• MMD Model: 3D models loaded from PMD/PMX formats used in MMD software and the BPMX format of babylon-mmd
• MMD Animation: Animation data loaded from VMD/VPD formats used in MMD software and the BVMD format of babylon-mmd
• Humanoid Model: Non-MMD models in human form, typically loaded from FBX, GLTF, VRM formats
• Humanoid Animation: Animation data applied to Humanoid Models, typically loaded from FBX, GLTF, VRMA formats

We discuss three cases:

1. Applying MMD Animation to MMD Model
2. Applying Humanoid Animation to MMD Model
3. Applying MMD Animation to Humanoid Model

It's important to clearly understand the required components as different runtime components are used for each case.

Applying MMD Animation to MMD Model

Applying MMD Animation to an MMD Model is the most basic and core functionality of babylon-mmd, and many options are provided to achieve this.

Basically, this is handled by the MMD Runtime.

MMD Runtime Components

The runtime is modularized by functionality, allowing for selective use as needed.

The following three processes for applying MMD animations are separated into independent modules:

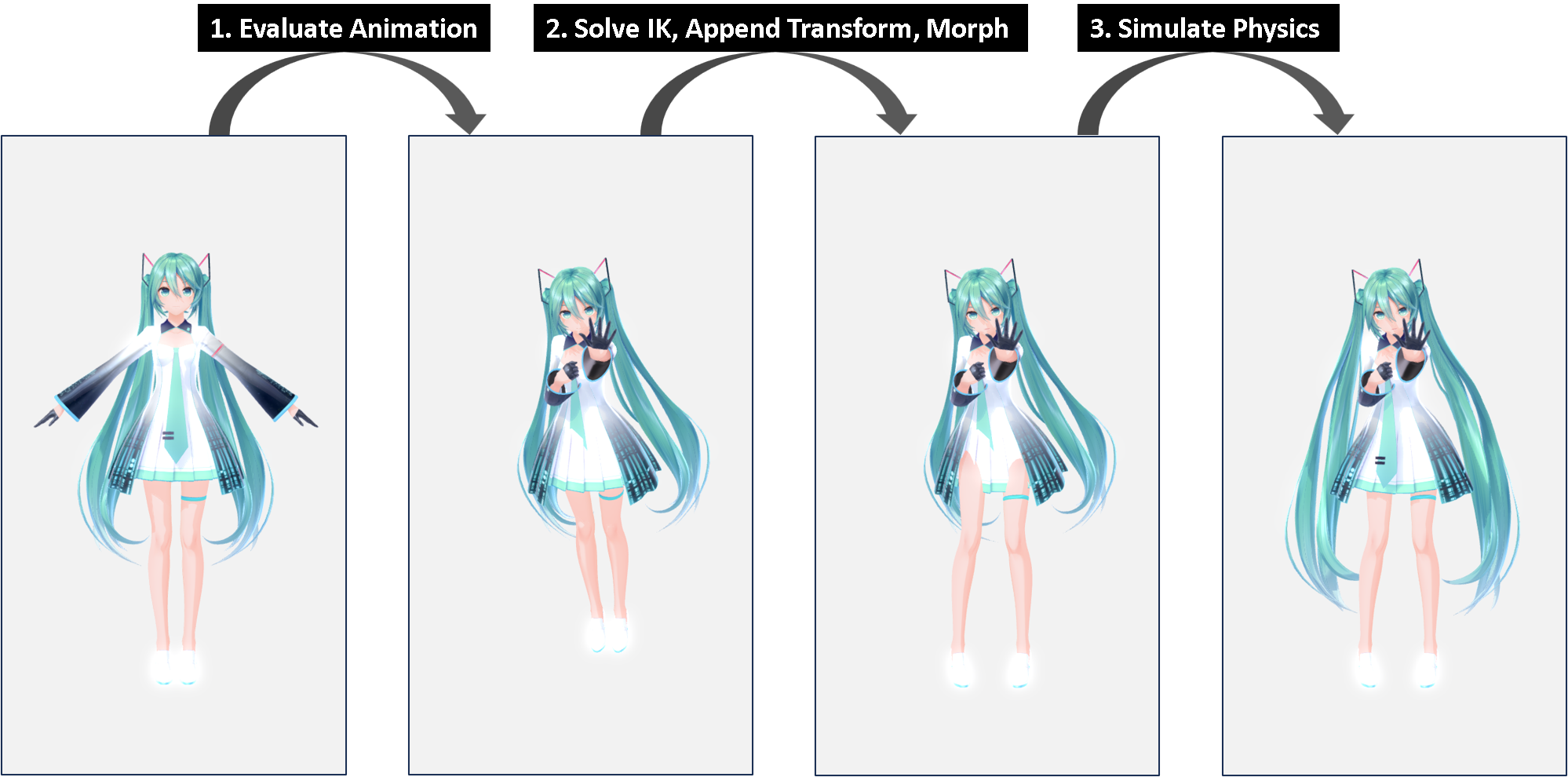

Image visualizing each process. Model: YYB Hatsune Miku_10th, Motion: メランコリ・ナイト by ほうき堂, Frame 3390.

info

Strictly speaking, the order of 'Solve IK, Append Transform, Morph' and 'Simulate Physics' can be changed. However, in general scenarios, they are mostly processed in the order shown in the figure.

1. Evaluate Animation
2. Solve IK, Append Transform, Morph
3. Simulate Physics

Various methods are provided for handling each process, and users can select the appropriate method according to their needs.

Evaluate Animation

Evaluate Animation is the process of evaluating animation data from MmdAnimation for a specific time frameTime.

The following implementations are provided to perform this:

Standalone:

Class	Description	Notes
MmdRuntimeCameraAnimation	Camera animation evaluator implementation	Standard JavaScript implementation providing stable and decent performance.
MmdRuntimeModelAnimation	Model animation evaluator implementation	Standard JavaScript implementation providing stable and decent performance.

Babylon.js Animation based:

Class	Description	Notes
MmdRuntimeCameraAnimationContainer	Babylon.js Animation based camera animation evaluator implementation	Uses Babylon.js animation container Animation.
MmdRuntimeModelAnimationContainer	Babylon.js Animation based model animation evaluator implementation	Uses Babylon.js animation container Animation.

Babylon.js animation runtime based:

Class	Description	Notes
AnimationGroup	Babylon.js animation runtime	Delegates all processes to Babylon.js animation runtime

WebAssembly based standalone:

Class	Description	Notes
MmdWasmRuntimeModelAnimation	WebAssembly based MMD animation evaluator implementation	Provides excellent performance. WebAssembly based implementation is not provided for camera animation.

Special purpose standalone:

Class	Description	Notes
MmdCompositeRuntimeCameraAnimation	Camera animation evaluator implementation supporting animation blending
MmdCompositeRuntimeModelAnimation	Model animation evaluator implementation supporting animation blending

Solve IK, Append Transform, Morph

MMD models must be controlled according to MMD specifications. For this, a solver for IK, Append Transform, and Morph is required.

The following implementations are provided to perform this:

Class	Description	Notes
MmdRuntime	Default implementation	Provides stable and decent performance. Easy to customize through inheritance, etc.
MmdWasmRuntime	WebAssembly based implementation	Provides excellent performance. Difficult to customize.

Simulate Physics

MMD models can perform physics simulations by applying Rigidbody to hair and clothes.

The following implementations are provided for this:

Class	Description	Notes
MmdBulletPhysics	Bullet Physics based implementation	WebAssembly ported version of Bullet Physics provided by babylon-mmd.
MmdWasmPhysics	Bullet Physics based implementation exclusively for MmdWasmRuntime	Implementation with lowest FFI cost providing highest performance. Difficult to customize.
MmdAmmoPhysics	Ammo.js Physics Plugin based implementation	Slightly unstable. Low performance. Can operate with asm.js version in environments that cannot run WebAssembly.
MmdPhysics	Havok Physics Plugin based implementation	Low simulation reproduction. Unstable. Recommended only in special situations requiring Havok Physics.

Common Runtime Combination Examples

We can choose the optimal runtime combination for each process.

The most stable combination that is easy to customize is as follows:

Process	Class
Evaluate Animation	MmdRuntimeCameraAnimation, MmdRuntimeModelAnimation
Solve IK, Append Transform, Morph	MmdRuntime
Simulate Physics	MmdBulletPhysics

The highest performance combination is as follows:

Process	Class
Evaluate Animation	MmdRuntimeCameraAnimation, MmdWasmRuntimeModelAnimation
Solve IK, Append Transform, Morph	MmdWasmRuntime
Simulate Physics	MmdWasmPhysics

In environments that cannot run WebAssembly, the following combination can be used:

Process	Class
Evaluate Animation	MmdRuntimeCameraAnimation, MmdRuntimeModelAnimation
Solve IK, Append Transform, Morph	MmdRuntime
Simulate Physics	MmdAmmoPhysics

Applying Humanoid Animation to MMD Model

The process of applying humanoid animation to an MMD model is not much different from applying MMD animation to an MMD model.

As mentioned above, MMD animation consists of the following three processes:

1. Evaluate Animation
2. Solve IK, Append Transform, Morph
3. Simulate Physics

You can apply Humanoid Animation instead of MMD Animation by changing only the first process.

The AnimationRetargeter class is provided for this purpose. It retargets humanoid animation to fit the MMD model.

After loading any humanoid animation as an AnimationGroup using the Babylon.js SceneLoader, you can apply humanoid animation to an MMD model by using AnimationRetargeter to retarget the Humanoid Animation to fit the MMD model.

In this case, AnimationGroup is used in the Evaluate Animation process.

Applying MMD Animation to Humanoid Model

You can apply MMD animation to a humanoid model using the utility class HumanoidMmd.

Due to structural differences between Humanoid Models and MMD Models, it is impossible to directly apply MMD Animation to a Humanoid Model.

Therefore, HumanoidMmd uses a proxy skeleton to apply MMD Animation and retarget the results to the Humanoid Model in real-time.

The process of applying MMD Animation to a Humanoid Model is almost the same as applying MMD animation to an MMD model, but with the additional step of wrapping the Humanoid Model as an Mmd Model.

Other Elements

The topics discussed above only cover how to apply animation to MMD models, but in reality, various elements participate in the runtime alongside MMD models.

These elements include:

• Audio or video sources
• Cameras
• UI elements

These are very common elements, but they are implemented very elaborately, so separate reference documentation is also provided for proper use.
