Convert PMX to BPMX format

This section explains how to convert PMX files to BPMX files.

To convert PMX files to BPMX files, you can use one of the following two methods:

• You can use a web application for conversion.
• You can convert them programmatically.

Each method has its pros and cons, so please choose the appropriate method according to your needs.

Use Converter Application

babylon-mmd provides a web application to convert PMX/PMD files to BPMX files.

You can use the application at the link below.

PMX to BPMX Converter

Screenshot of the PMX to BPMX Converter. Model: YYB Hatsune Miku_NT

1. Drag and drop the folder containing the PMX/PMD file.

   • It must include all texture files required to load the MMD model.

2. Select the PMX/PMD file to convert from the file list, and the model will be displayed in the Scene on the right.

3. Set the optimization options. Each option can be set differently depending on the characteristics of the model you want to convert.

   • Preserve Serialization Data: Preserves serialization data from the PMX/PMD file that babylon-mmd does not use.
     • This includes things like Texture path, Material english name, and Display frame.
     • This is internally controlled by the loaderOptions.mmdmodel.preserveSerializationData option.
   • Optimize Submeshes: Sets whether to separate SubMeshes into individual Meshes.
     • This is internally controlled by the loaderOptions.mmdmodel.optimizeSubmeshes option.
   • Build Skeleton: Sets whether to save the model's Skeleton data.
     • You can turn this option off for models that do not require a skeleton, such as stages.
   • Build Morph Targets: Sets whether to save the model's Morph Target data.
     • You can turn this option off for models that do not require Morph Targets, such as stages.

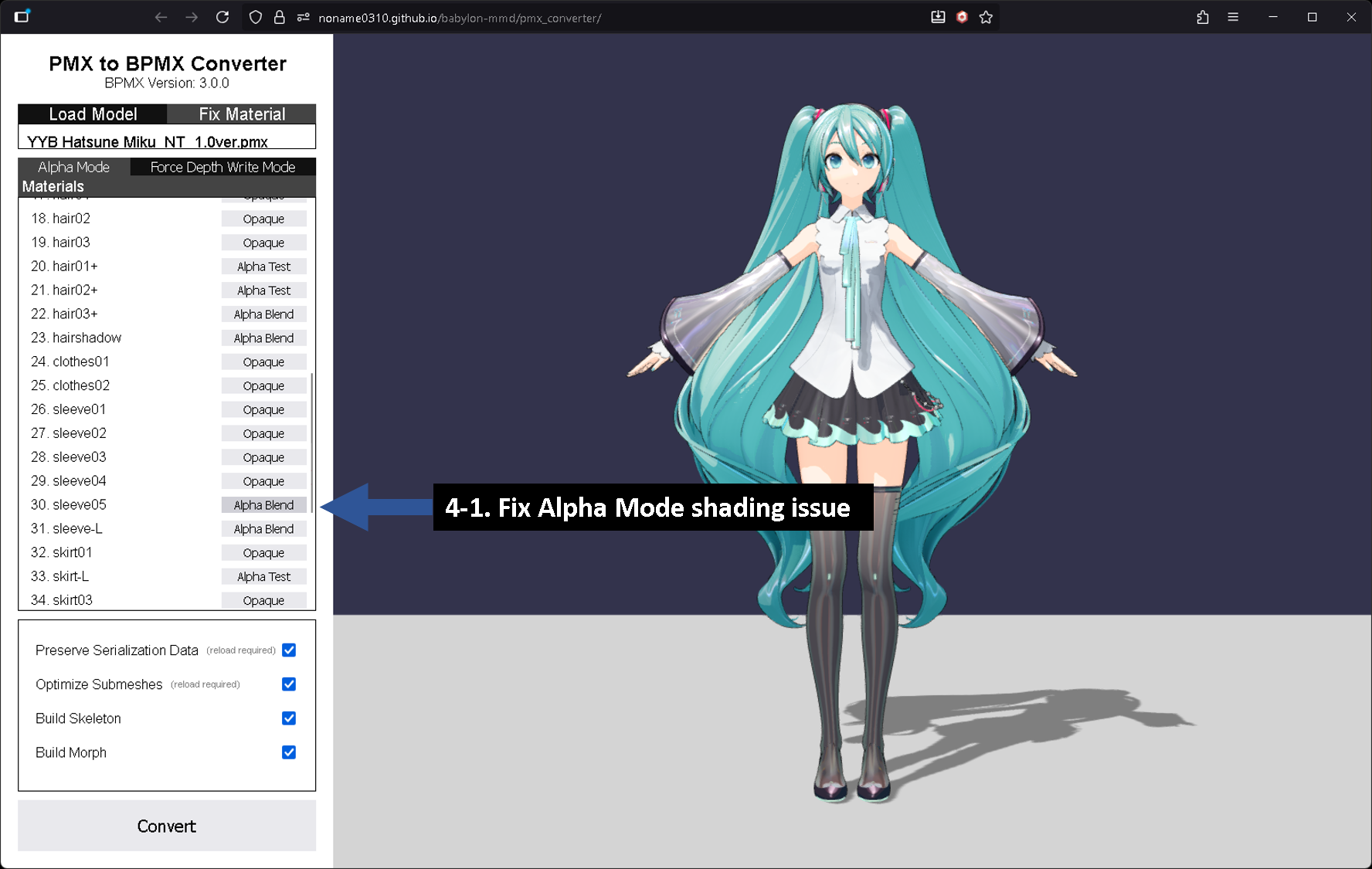

4. Fix material rendering issues.

   • This step is optional. If the model renders correctly, you can skip this step.
   • For this, please refer to the Fix Material Rendering Method section below.

5. Perform the conversion.

info

Despite its name, the PMX to BPMX Converter also supports PMD files.

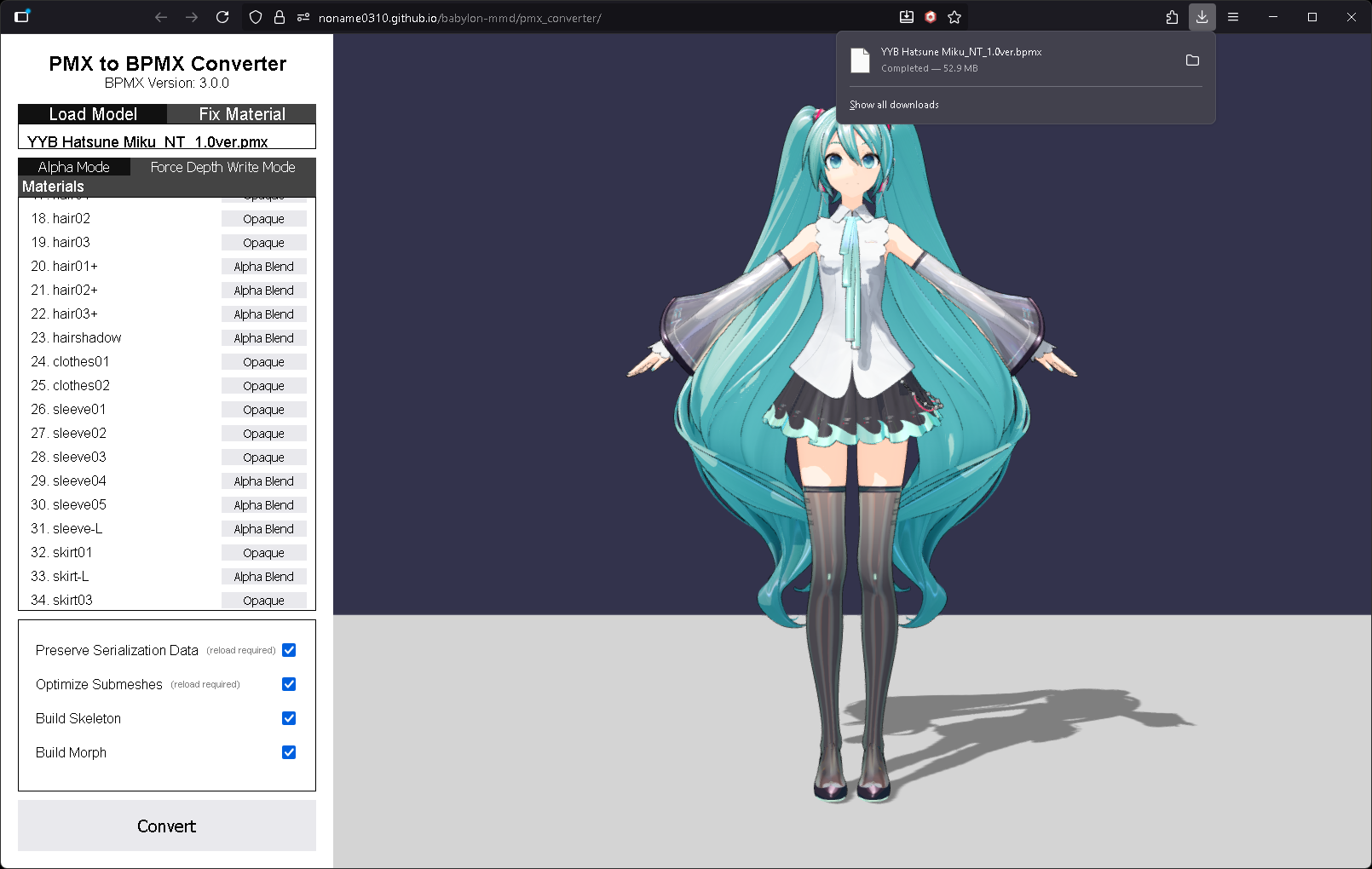

The converted file downloaded in BPMX format.

Fix Material Rendering Method

BPMX files store the material's Alpha Evaluation results in the format.

Specifically, it stores the Alpha Evaluation results required for the MmdMaterialRenderMethod.AlphaEvaluation or MmdMaterialRenderMethod.DepthWriteAlphaBlendingWithEvaluation methods, respectively.

This result is used later when loading the model, which speeds up the model loading process by skipping the Alpha Evaluation step. It also allows you to manually correct and convert elements that are rendered incorrectly due to algorithm flaws.

The Fix Material tab provides a UI to modify these Alpha Evaluation results.

Fix Material's Alpha Mode tab

Alpha Mode shows how the model looks with the MmdMaterialRenderMethod.AlphaEvaluation render method. Here you can modify the rendering method of materials that look strange.

For the YYB Hatsune Miku_NT model, changing the rendering method of B, B-L, and sleeve05 to Alpha Blend gives better results.

Fix Material's Force Depth Write Mode tab

Force Depth Write Mode shows how the model looks with the MmdMaterialRenderMethod.DepthWriteAlphaBlendingWithEvaluation render method. Here you can modify the rendering method of materials that look strange.

For the YYB Hatsune Miku_NT model, changing the rendering method of sleeve05 to Alpha Blend gives better results.

Programmatic Conversion

BPMX conversion is performed by the BpmxConverter.

BpmxConverter takes an MmdMesh as input and converts it to BPMX format.

The simplest usage example is as follows:

const materialBuilder = new MmdStandardMaterialBuilder();
materialBuilder.deleteTextureBufferAfterLoad = false; // 1
const assetContainer = await LoadAssetContainerAsync(
    fileOrUrl,
    scene,
    {
        pluginOptions: {
            mmdmodel: {
                materialBuilder: materialBuilder,
                loggingEnabled: true
            }
        }
    }
);
const mmdMesh = assetContainer.meshes[0] as MmdMesh;

const bpmxConverter = new BpmxConverter();
bpmxConverter.loggingEnabled = true;
const arrayBuffer = bpmxConverter.convert(mmdMesh); // 2
assetContainer.dispose(); // 3

1. By default, the material builder is set to delete the buffer after uploading the texture to the GPU. However, this makes it impossible to serialize the texture, so you must first set the material builder's deleteTextureBufferAfterLoad option to false.

2. Perform the conversion using BpmxConverter.convert. This function can take options as a second parameter.

3. Release resources by calling assetContainer.dispose(). If you used assetContainer.addAllToScene(), you must manually release all resources (Geometry, Material, Texture, MorphTargetManager, Skeleton).

However, in the example above, the Alpha Evaluation results are not saved in the BPMX file. To save the Alpha Evaluation results, you must use TextureAlphaChecker to manually generate the Alpha Evaluation results and pass them to the BpmxConverter.

Here is an example that does all of this:

const settings = {
    preserveSerializationData: true,
    optimizeSubmeshes: true,
    buildSkeleton: true,
    buildMorph: true
};

const materialBuilder = new MmdStandardMaterialBuilder();
materialBuilder.deleteTextureBufferAfterLoad = false;
materialBuilder.renderMethod = MmdMaterialRenderMethod.AlphaEvaluation;
materialBuilder.forceDisableAlphaEvaluation = true;

const textureAlphaChecker = new TextureAlphaChecker(scene);

const assetContainer = await LoadAssetContainerAsync(
    fileOrUrl,
    scene,
    {
        pluginOptions: {
            mmdmodel: {
                materialBuilder: materialBuilder,
                preserveSerializationData: settings.preserveSerializationData,
                optimizeSubmeshes: settings.optimizeSubmeshes,
                loggingEnabled: true
            }
        }
    }
);
const mmdMesh = assetContainer.meshes[0] as MmdMesh;

const meshes = mmdMesh.metadata.meshes;
const materials = mmdMesh.metadata.materials;
const translucentMaterials: boolean[] = new Array(materials.length).fill(false);
const alphaEvaluateResults: number[] = new Array(materials.length).fill(-1);

for (let i = 0; i < materials.length; ++i) {
    const material = materials[i] as MmdStandardMaterial;

    // collect referenced meshes
    const referencedMeshes: ReferencedMesh[] = [];
    for (let meshIndex = 0; meshIndex < meshes.length; ++meshIndex) {
        const mesh = meshes[meshIndex];
        if ((mesh.material as MultiMaterial).subMaterials !== undefined) {
            const subMaterials = (mesh.material as MultiMaterial).subMaterials;
            for (let subMaterialIndex = 0; subMaterialIndex < subMaterials.length; ++subMaterialIndex) {
                const subMaterial = subMaterials[subMaterialIndex];
                if (subMaterial === material) {
                    referencedMeshes.push({
                        mesh,
                        subMeshIndex: subMaterialIndex
                    });
                }
            }
        } else {
            if (mesh.material === material) referencedMeshes.push(mesh);
        }
    }

    const diffuseTexture = material.diffuseTexture;

    // evaluate DepthWriteAlphaBlendingWithEvaluation renderMethod result manually
    if (material.alpha < 1) {
        translucentMaterials[i] = true;
    } else if (!diffuseTexture) {
        translucentMaterials[i] = false;
    } else {
        translucentMaterials[i] = true;
        for (let referencedMeshIndex = 0; referencedMeshIndex < referencedMeshes.length; ++referencedMeshIndex) {
            const referencedMesh = referencedMeshes[referencedMeshIndex];
            let isOpaque = false;
            if ((referencedMesh as { mesh: Mesh; subMeshIndex: number }).subMeshIndex !== undefined) {
                const { mesh, subMeshIndex } = referencedMesh as { mesh: Mesh; subMeshIndex: number };
                isOpaque = await textureAlphaChecker.hasFragmentsOnlyOpaqueOnGeometryAsync(diffuseTexture, mesh, subMeshIndex);
            } else {
                isOpaque = await textureAlphaChecker.hasFragmentsOnlyOpaqueOnGeometryAsync(diffuseTexture, referencedMesh as Mesh, null);
            }
            if (isOpaque) {
                translucentMaterials[i] = false;
                break;
            }
        }
    }

    // evaluate AlphaEvaluation renderMethod result manually
    if (diffuseTexture !== null) {
        let transparencyMode = Number.MIN_SAFE_INTEGER;
        for (let i = 0; i < referencedMeshes.length; ++i) {
            const referencedMesh = referencedMeshes[i];

            const newTransparencyMode = await textureAlphaChecker.hasTranslucentFragmentsOnGeometryAsync(
                diffuseTexture,
                (referencedMesh as { mesh: Mesh })?.mesh ?? referencedMesh as Mesh,
                (referencedMesh as { subMeshIndex: number })?.subMeshIndex !== undefined
                    ? (referencedMesh as { subMeshIndex: number }).subMeshIndex
                    : null,
                materialBuilder.alphaThreshold,
                materialBuilder.alphaBlendThreshold
            );

            if (transparencyMode < newTransparencyMode) {
                transparencyMode = newTransparencyMode;
            }
        }
        alphaEvaluateResults[i] = transparencyMode !== Number.MIN_SAFE_INTEGER
            ? transparencyMode
            : Material.MATERIAL_OPAQUE;
    } else {
        alphaEvaluateResults[i] = Material.MATERIAL_OPAQUE;
    }
}

const bpmxConverter = new BpmxConverter();
bpmxConverter.loggingEnabled = true;
const arrayBuffer = bpmxConverter.convert(mmdMesh, {
    buildSkeleton: settings.buildSkeleton,
    buildMorph: settings.buildMorph,
    translucentMaterials: translucentMaterials,
    alphaEvaluateResults: alphaEvaluateResults
});
assetContainer.dispose();

You can create a function for this to reuse it as needed.

For more detailed implementation details, please refer to the PMX to BPMX Converter Source.

The BpmxConverter API supports various options, making it very tricky to write code that fully adheres to all specifications, but you can get useful results by selectively using only the features you need.
