Fix BMP Texture Loader

If you encounter issues when loading models that use BMP textures, you can refer to this document to resolve the problem.

Problem Diagnosis

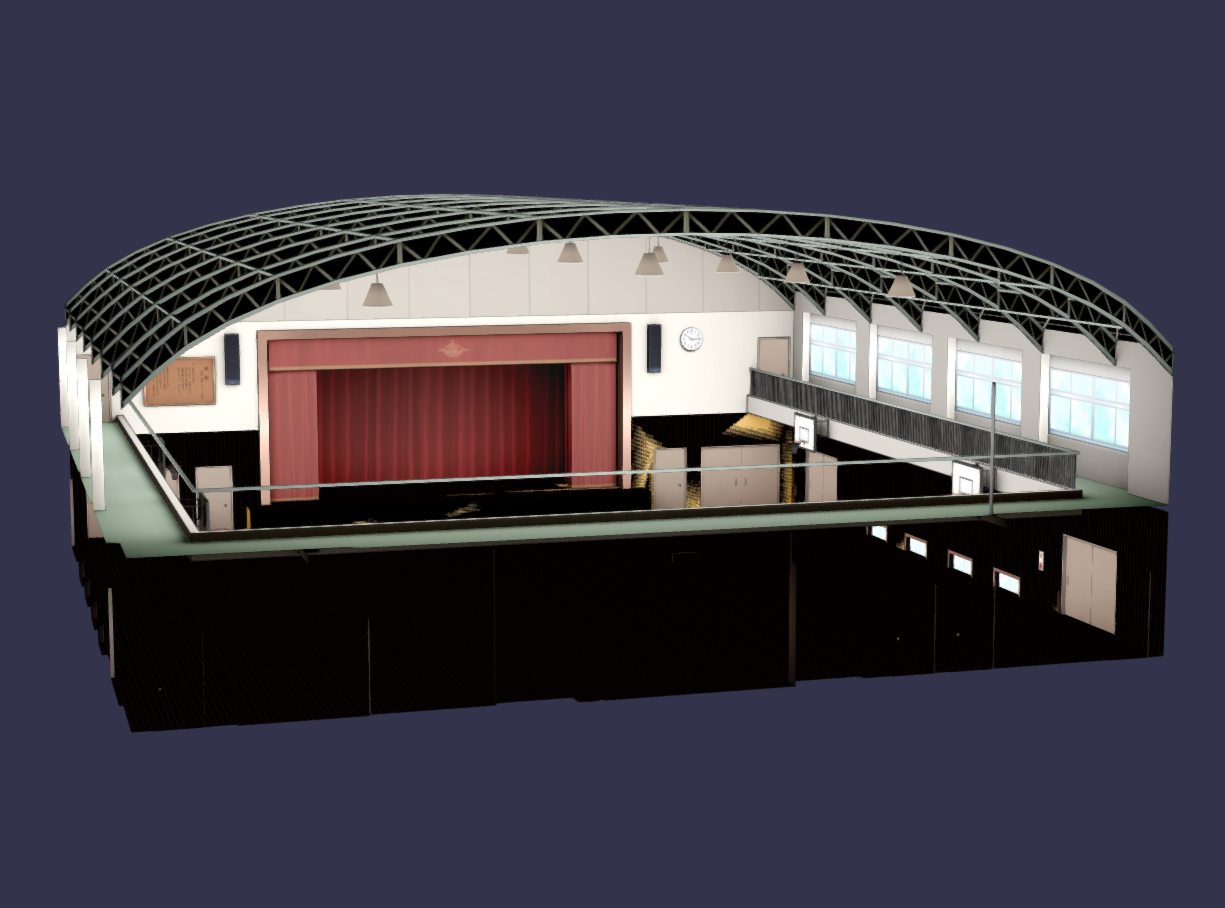

Example of incorrectly loaded texture from the MMD School Auditorium Stage stage model.

When loading models that use BMP textures, there are cases where BMP files with alpha channels are not displayed properly.

Cause

This issue occurs due to differences in how browsers and MMD read BMP texture files. (Babylon.js uses the browser's BMP texture loading implementation.)

The problem is that browsers ignore the alpha channel and only read RGB channels, even when the texture has an alpha channel. This causes alpha channel loss.

Solution

babylon-mmd provides a BMP texture loader that performs additional processing to correctly load BMP textures.

To use this, you need to register babylon-mmd's BMP texture loader to the Babylon.js texture loader global state.

import { RegisterDxBmpTextureLoader } from "babylon-mmd/esm/Loader/registerDxBmpTextureLoader";

RegisterDxBmpTextureLoader();

The RegisterDxBmpTextureLoader function registers babylon-mmd's BMP texture loader to Babylon.js's texture loader. This function only affects the first call.

info

This function is a side-effect that runs when importing the index. e.g. import { MmdRuntime } from "babylon-mmd";

Therefore, if you import babylon-mmd's index even once, the DxBmpTextureLoader will already be registered.

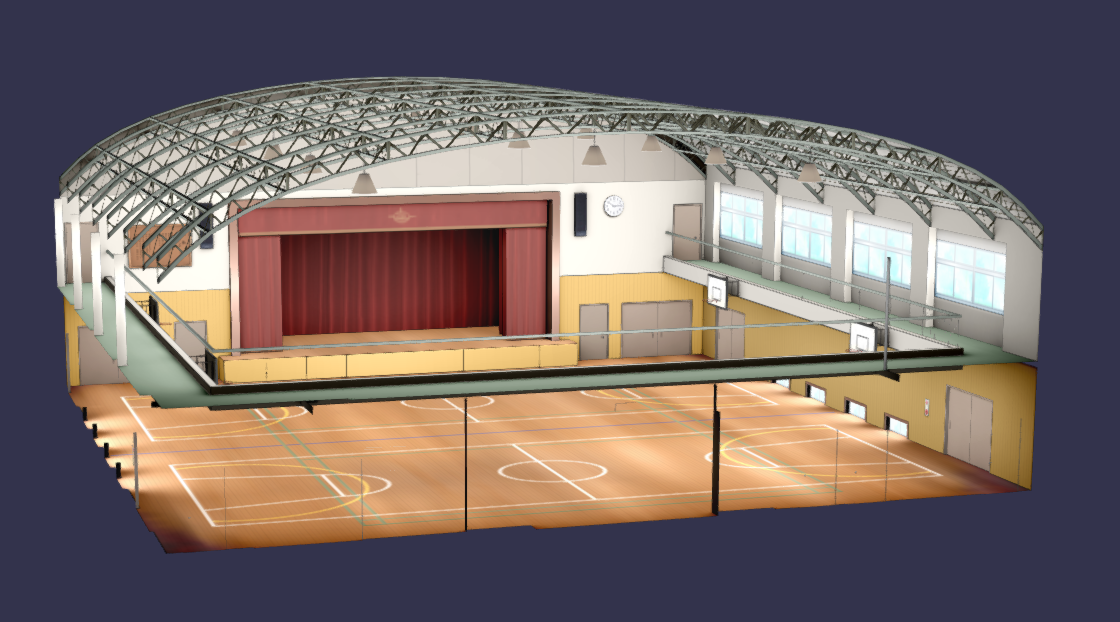

Example of correctly loaded texture from the MMD School Auditorium Stage stage model.
