Project Setup

First, we need to set up an SPA project to use babylon-mmd. This tutorial uses a webpack-based project template.

Start by cloning the project with the following command:

git clone https://github.com/noname0310/babylon-mmd-template

This project includes configurations for using TypeScript, Webpack, ESLint, Babylon.js, and babylon-mmd.

The specific build and development environment configurations are as follows:

  • TypeScript (tsconfig.json)

    • "@/" alias for referencing the src folder
    • Strict mode enabled with other strict type checking

  • Webpack (webpack.config.ts)

    • Dev server configuration (https, localhost:20310)
    • SharedArrayBuffer enabled (cross-origin-isolated)
    • All resources in the res folder can be loaded via fetch (CopyWebpackPlugin)
    • ESLint auto fix on save
    • Shader code chunk splitting
    • SourceMap enabled (dev mode)

  • ESLint (eslint.config.mjs)

    • Configuration aligned with Babylon.js coding style guide

The source structure of this project is as follows:

/ (root)
├── /res: Folder containing PMX models, VMD animations, MP3 audio, etc.
├── /src: Folder containing the project's source code
│   ├── /baseRuntime.ts: Babylon.js engine creation and rendering loop setup code
│   ├── /index.html: HTML template
│   ├── /index.ts: Entry point, creates scene using scene builder and starts rendering loop
│   └── /sceneBuilder.ts: Code that configures the Scene

We will only modify the sceneBuilder.ts file to configure the MMD scene.

First, install the project dependencies and start the development server:

npm install
npm start

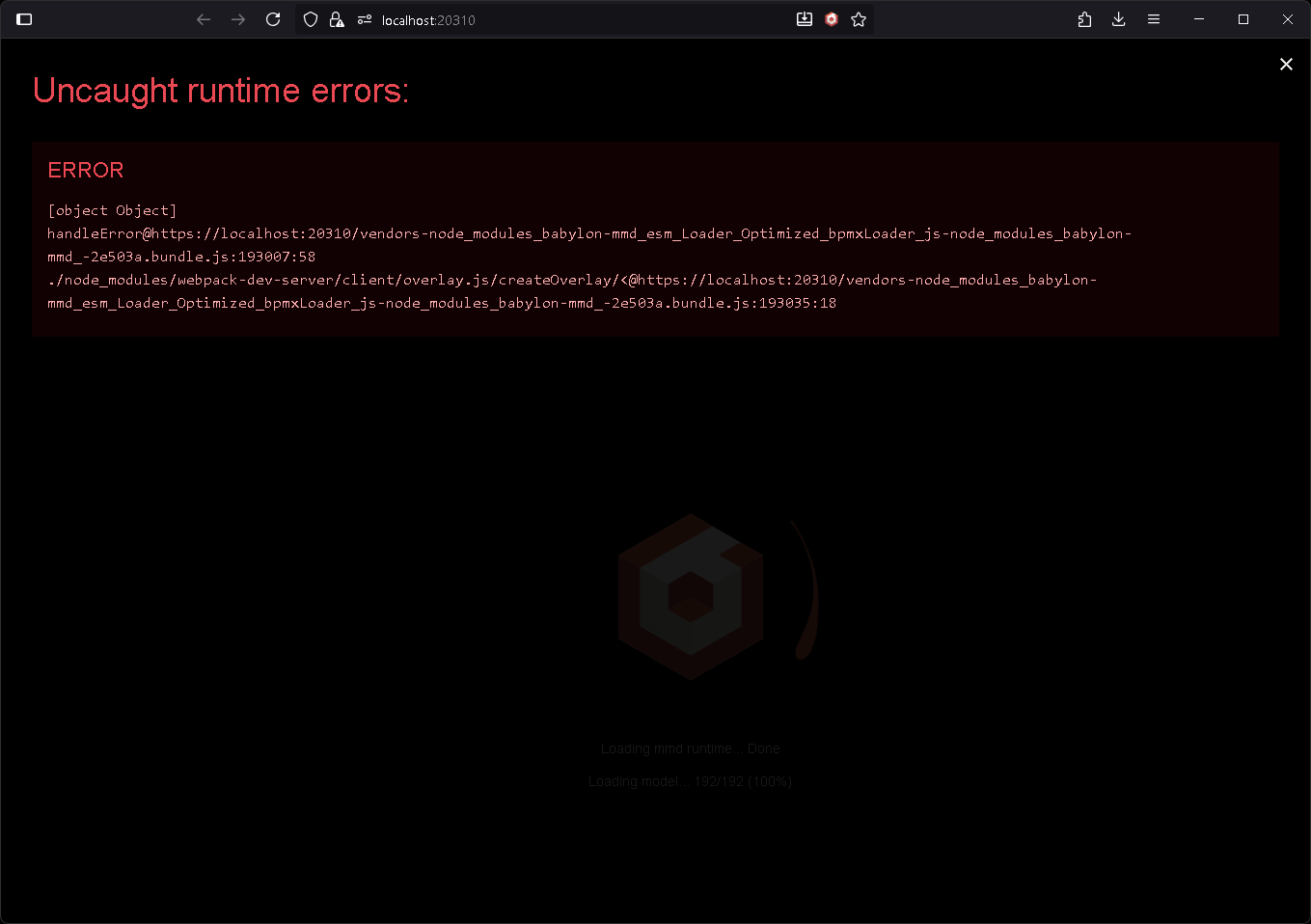

When you open https://localhost:20310 in your browser, you'll see the following error:

first run

The sceneBuilder.ts file contains a babylon-mmd example using WebXR by default. However, an error occurs because there are no MMD models and animations to load.

We will completely rewrite the sceneBuilder.ts file to configure the MMD scene.

Start with an empty build method as follows:

src/sceneBuilder.ts
import type { AbstractEngine } from "@babylonjs/core/Engines/abstractEngine";
import { Scene } from "@babylonjs/core/scene";

import type { ISceneBuilder } from "./baseRuntime";

export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        const scene = new Scene(engine);
        return scene;
    }
}
