Load and Play VMD Animation

Now let's load and play VMD animations.

Download VMD Animation

First, we need a VMD animation to load.

This example uses the VMD animation distributed with the メランコリ・ナイト video by ほうき堂.

Download the animation, extract it, and place it in the res/private_test/motion/ folder.

vscode-file-structure

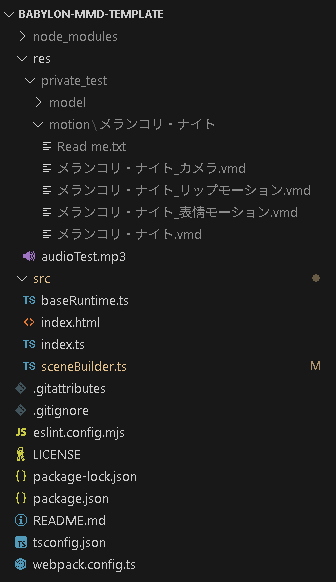

Motion folder structure example

Load VMD Animation

Use the VmdLoader class to load VMD animations.

src/sceneBuilder.ts
//...
import { VmdLoader } from "babylon-mmd/esm/Loader/vmdLoader";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const vmdLoader = new VmdLoader(scene);
        vmdLoader.loggingEnabled = true;

        const [mmdAnimation, modelMesh] = await Promise.all([
            vmdLoader.loadAsync("motion",
                [
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_カメラ.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_表情モーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_リップモーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト.vmd"
                ]),
            LoadAssetContainerAsync(
                "res/private_test/model/YYB Hatsune Miku_10th/YYB Hatsune Miku_10th_v1.02.pmx",
                scene,
                {
                    pluginOptions: {
                        mmdmodel: {
                            loggingEnabled: true,
                            materialBuilder: materialBuilder
                        }
                    }
                }
            ).then(result => {
                result.addAllToScene();
                return result.rootNodes[0] as MmdMesh;
            })
        ]);
        //...

        return scene;
    }

Since both VMD animations and PMX models are loaded over the network, we can use Promise.all to load them in parallel.

Therefore, we execute the vmdLoader.loadAsync and LoadAssetContainerAsync asynchronous operations together.

loadAsync Method

The first argument of the loadAsync method is the animation name. This name is used internally for identification later.

The second argument is either an array of VMD file URLs or a single URL to load. If you specify multiple VMD files, they are merged into one animation in the specified order.

info

This example merges camera motion and dance motion into a single animation. This is possible because MMD animations manage model motion data and camera motion data separately.

If you want to play animations with N people dancing, you need to create separate animations for each model.

Create MMD Runtime

To play animations loaded with VmdLoader, you need MmdModel or MmdCamera controlled by an MmdRuntime instance.

Therefore, first create an MmdRuntime instance.

src/sceneBuilder.ts
//...
import { MmdRuntime } from "babylon-mmd/esm/Runtime/mmdRuntime";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const mmdRuntime = new MmdRuntime(scene);
        mmdRuntime.loggingEnabled = true;
        mmdRuntime.register(scene);
        mmdRuntime.playAnimation();
        //...
        return scene;
    }
}

MmdRuntime manages MMD models and cameras and handles animation playback. Call the register method to register update logic to the scene, and call the playAnimation method to start animation playback.

It's possible to play even without any data, and in this case, you can dynamically add resources during animation playback.

Bind Animation

After creating the MmdRuntime instance, use the createRuntimeAnimation method to apply animations to MmdModel and MmdCamera.

src/sceneBuilder.ts
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const [mmdAnimation, modelMesh] = await Promise.all([
            //...
        ]);

        const cameraAnimationHandle = mmdCamera.createRuntimeAnimation(mmdAnimation);
        mmdCamera.setRuntimeAnimation(cameraAnimationHandle);
        mmdRuntime.addAnimatable(mmdCamera);

        {
            for (const mesh of modelMesh.metadata.meshes) mesh.receiveShadows = true;
            shadowGenerator.addShadowCaster(modelMesh);

            const mmdModel = mmdRuntime.createMmdModel(modelMesh);
            const modelAnimationHandle = mmdModel.createRuntimeAnimation(mmdAnimation);
            mmdModel.setRuntimeAnimation(modelAnimationHandle);
        }

        return scene;
    }
}

You can bind MmdAnimation to cameras or models using the createRuntimeAnimation method.

Import Required Side Effects

Import the side effects needed to play animations.

src/sceneBuilder.ts
//...
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeCameraAnimation";
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeModelAnimation";
//...

babylon-mmd provides various implementations for applying animations to MMD models and cameras.

mmdRuntimeCameraAnimation and mmdRuntimeModelAnimation are the most commonly used camera and model animation implementations.

If you don't import these side effects, the createRuntimeAnimation method will cause a runtime error.

Result

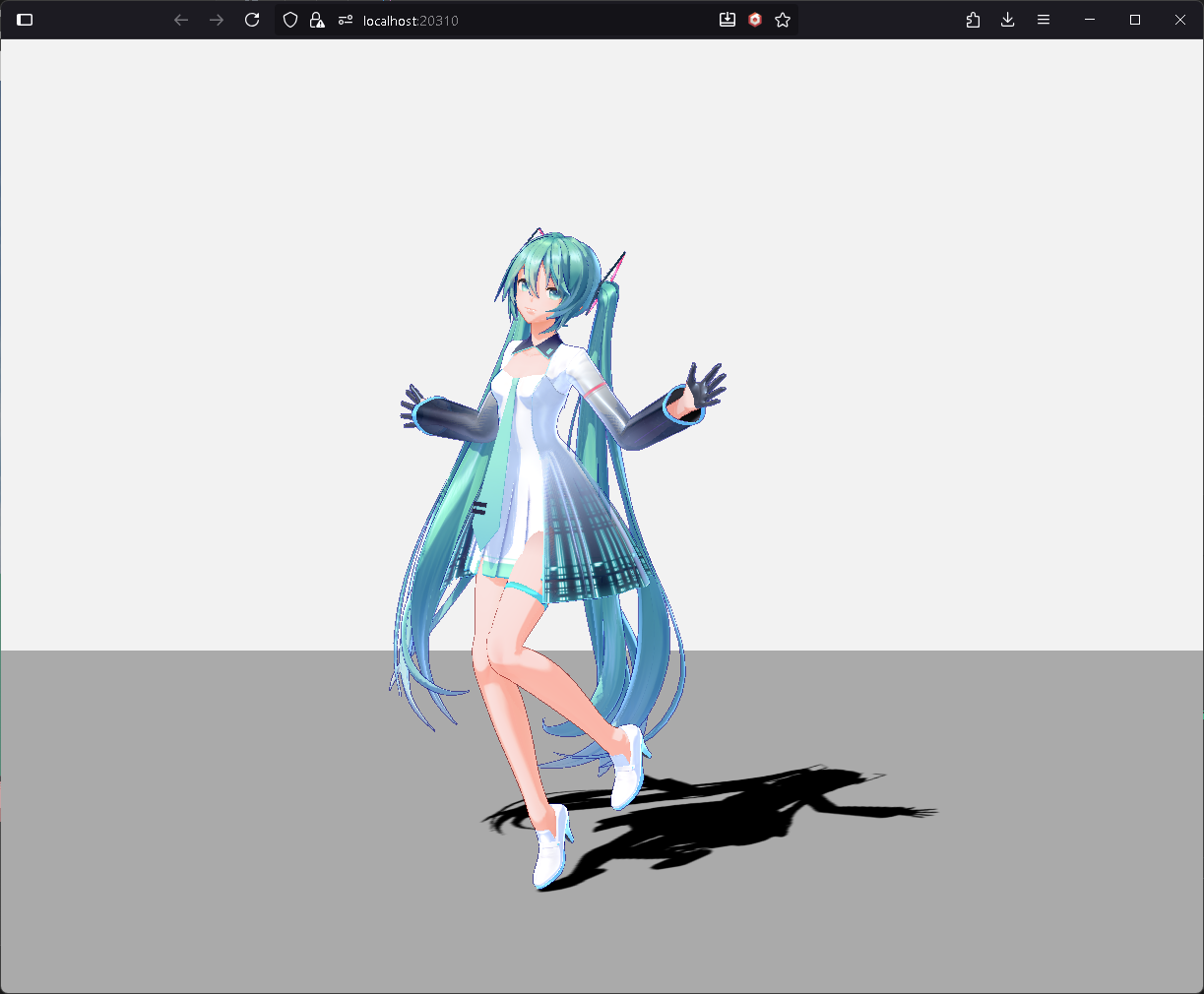

Now when you run the scene, you can see the animation playing.

result

Full code

src/sceneBuilder.ts
import "@babylonjs/core/Lights/Shadows/shadowGeneratorSceneComponent";
import "babylon-mmd/esm/Loader/pmxLoader";
import "babylon-mmd/esm/Loader/mmdOutlineRenderer";
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeCameraAnimation";
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeModelAnimation";

import type { AbstractEngine } from "@babylonjs/core/Engines/abstractEngine";
import { DirectionalLight } from "@babylonjs/core/Lights/directionalLight";
import { ShadowGenerator } from "@babylonjs/core/Lights/Shadows/shadowGenerator";
import { LoadAssetContainerAsync } from "@babylonjs/core/Loading/sceneLoader";
import { Color3, Color4 } from "@babylonjs/core/Maths/math.color";
import { Vector3 } from "@babylonjs/core/Maths/math.vector";
import { CreateGround } from "@babylonjs/core/Meshes/Builders/groundBuilder";
import { Scene } from "@babylonjs/core/scene";
import { MmdStandardMaterialBuilder } from "babylon-mmd/esm/Loader/mmdStandardMaterialBuilder";
import { VmdLoader } from "babylon-mmd/esm/Loader/vmdLoader";
import { MmdCamera } from "babylon-mmd/esm/Runtime/mmdCamera";
import type { MmdMesh } from "babylon-mmd/esm/Runtime/mmdMesh";
import { MmdRuntime } from "babylon-mmd/esm/Runtime/mmdRuntime";

import type { ISceneBuilder } from "./baseRuntime";

export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        const materialBuilder = new MmdStandardMaterialBuilder();
        const scene = new Scene(engine);
        scene.clearColor = new Color4(0.95, 0.95, 0.95, 1.0);
        scene.ambientColor = new Color3(0.5, 0.5, 0.5);

        const mmdCamera = new MmdCamera("MmdCamera", new Vector3(0, 10, 0), scene);

        const directionalLight = new DirectionalLight("DirectionalLight", new Vector3(0.5, -1, 1), scene);
        directionalLight.intensity = 1.0;
        directionalLight.autoCalcShadowZBounds = true;

        const shadowGenerator = new ShadowGenerator(1024, directionalLight, true);
        shadowGenerator.transparencyShadow = true;
        shadowGenerator.usePercentageCloserFiltering = true;
        shadowGenerator.forceBackFacesOnly = true;
        shadowGenerator.filteringQuality = ShadowGenerator.QUALITY_MEDIUM;
        shadowGenerator.frustumEdgeFalloff = 0.1;

        const ground = CreateGround("ground1", { width: 100, height: 100, subdivisions: 2, updatable: false }, scene);
        ground.receiveShadows = true;

        const vmdLoader = new VmdLoader(scene);
        vmdLoader.loggingEnabled = true;

        const mmdRuntime = new MmdRuntime(scene);
        mmdRuntime.loggingEnabled = true;
        mmdRuntime.register(scene);
        mmdRuntime.playAnimation();

        const [mmdAnimation, modelMesh] = await Promise.all([
            vmdLoader.loadAsync("motion",
                [
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_カメラ.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_表情モーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_リップモーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト.vmd"
                ]),
            LoadAssetContainerAsync(
                "res/private_test/model/YYB Hatsune Miku_10th/YYB Hatsune Miku_10th_v1.02.pmx",
                scene,
                {
                    pluginOptions: {
                        mmdmodel: {
                            loggingEnabled: true,
                            materialBuilder: materialBuilder
                        }
                    }
                }
            ).then(result => {
                result.addAllToScene();
                return result.rootNodes[0] as MmdMesh;
            })
        ]);

        const cameraAnimationHandle = mmdCamera.createRuntimeAnimation(mmdAnimation);
        mmdCamera.setRuntimeAnimation(cameraAnimationHandle);
        mmdRuntime.addAnimatable(mmdCamera);

        {
            for (const mesh of modelMesh.metadata.meshes) mesh.receiveShadows = true;
            shadowGenerator.addShadowCaster(modelMesh);
            const mmdModel = mmdRuntime.createMmdModel(modelMesh);
            const modelAnimationHandle = mmdModel.createRuntimeAnimation(mmdAnimation);
            mmdModel.setRuntimeAnimation(modelAnimationHandle);
        }

        return scene;
    }
}
