Now let's add physics simulation.

Prepare MMD WASM Instance​

First, we need an MMD WASM instance that includes the physics engine implementation for physics simulation.

This object is a WebAssembly module that provides MMD runtime and Bullet Physics engine bindings. In this example, we only use the physics engine functionality.

src/sceneBuilder.ts
import { MmdWasmInstanceTypeMPR } from "babylon-mmd/esm/Runtime/Optimized/InstanceType/multiPhysicsRelease";
import { GetMmdWasmInstance } from "babylon-mmd/esm/Runtime/Optimized/mmdWasmInstance";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const wasmInstance = await GetMmdWasmInstance(new MmdWasmInstanceTypeMPR());
        //...
    }
}

Create and Register MultiPhysicsRuntime​

Use the MMD WASM instance to create a MultiPhysicsRuntime object. This object is a simulation runtime that handles multiple Physics Worlds simultaneously and internally uses Bullet Physics.

src/sceneBuilder.ts
import { MultiPhysicsRuntime } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/Impl/multiPhysicsRuntime";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const physicsRuntime = new MultiPhysicsRuntime(wasmInstance);
        physicsRuntime.setGravity(new Vector3(0, -98, 0));
        physicsRuntime.register(scene);
        //...
    }
}

Here we use the setGravity method to set the gravity vector. Gravity is set to -98, which is 10 times the actual gravitational acceleration. This is because MMD programs are configured this way. (The default gravity for MultiPhysicsRuntime is (0, -9.8, 0).)

Call physicsRuntime.register(scene); to integrate the physics simulation into the scene's rendering loop.

Pass Physics Engine When Creating MmdRuntime​

Now you can use MultiPhysicsRuntime to create simulation instances for MMD models. When creating an MmdRuntime object, pass an MmdBulletPhysics object to the constructor. This object provides the logic to handle physics simulation for MMD models using MultiPhysicsRuntime.

src/sceneBuilder.ts
import { MmdBulletPhysics } from "babylon-mmd/esm/Runtime/Optimized/Physics/mmdBulletPhysics";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const mmdRuntime = new MmdRuntime(scene, new MmdBulletPhysics(physicsRuntime));
        mmdRuntime.loggingEnabled = true;
        mmdRuntime.register(scene);
        mmdRuntime.setAudioPlayer(audioPlayer);
        mmdRuntime.playAnimation();
        //...
    }
}

Include WASM Instance Creation in Promise.all​

Since GetMmdWasmInstance is an asynchronous function, we'll include it in Promise.all to process it in parallel with other asynchronous operations.

src/sceneBuilder.ts
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const [[mmdRuntime, physicsRuntime], mmdAnimation, modelMesh] = await Promise.all([
            (async(): Promise<[MmdRuntime, MultiPhysicsRuntime]> => {
                const wasmInstance = await GetMmdWasmInstance(new MmdWasmInstanceTypeMPR());

                const physicsRuntime = new MultiPhysicsRuntime(wasmInstance);
                physicsRuntime.setGravity(new Vector3(0, -98, 0));
                physicsRuntime.register(scene);

                const mmdRuntime = new MmdRuntime(scene, new MmdBulletPhysics(physicsRuntime));
                mmdRuntime.loggingEnabled = true;
                mmdRuntime.register(scene);
                mmdRuntime.setAudioPlayer(audioPlayer);
                mmdRuntime.playAnimation();
                return [mmdRuntime, physicsRuntime];
            })(),
            //...
        ]);
    }
}

Add Ground Collider​

Finally, let's add a ground collider so the MMD model can collide with the ground.

To do this, we create a PhysicsStaticPlaneShape object that defines an infinite plane, and use it to create a RigidBody object. This RigidBody object will serve as the ground in the physics simulation.

src/sceneBuilder.ts
import { MotionType } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/motionType";
import { PhysicsStaticPlaneShape } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/physicsShape";
import { RigidBody } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/rigidBody";
import { RigidBodyConstructionInfo } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/rigidBodyConstructionInfo";
//...
export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        //...
        const info = new RigidBodyConstructionInfo(physicsRuntime.wasmInstance);
        info.motionType = MotionType.Static;
        info.shape = new PhysicsStaticPlaneShape(physicsRuntime, new Vector3(0, 1, 0), 0);
        const groundBody = new RigidBody(physicsRuntime, info);
        physicsRuntime.addRigidBodyToGlobal(groundBody);

        return scene;
    }
}

Result​

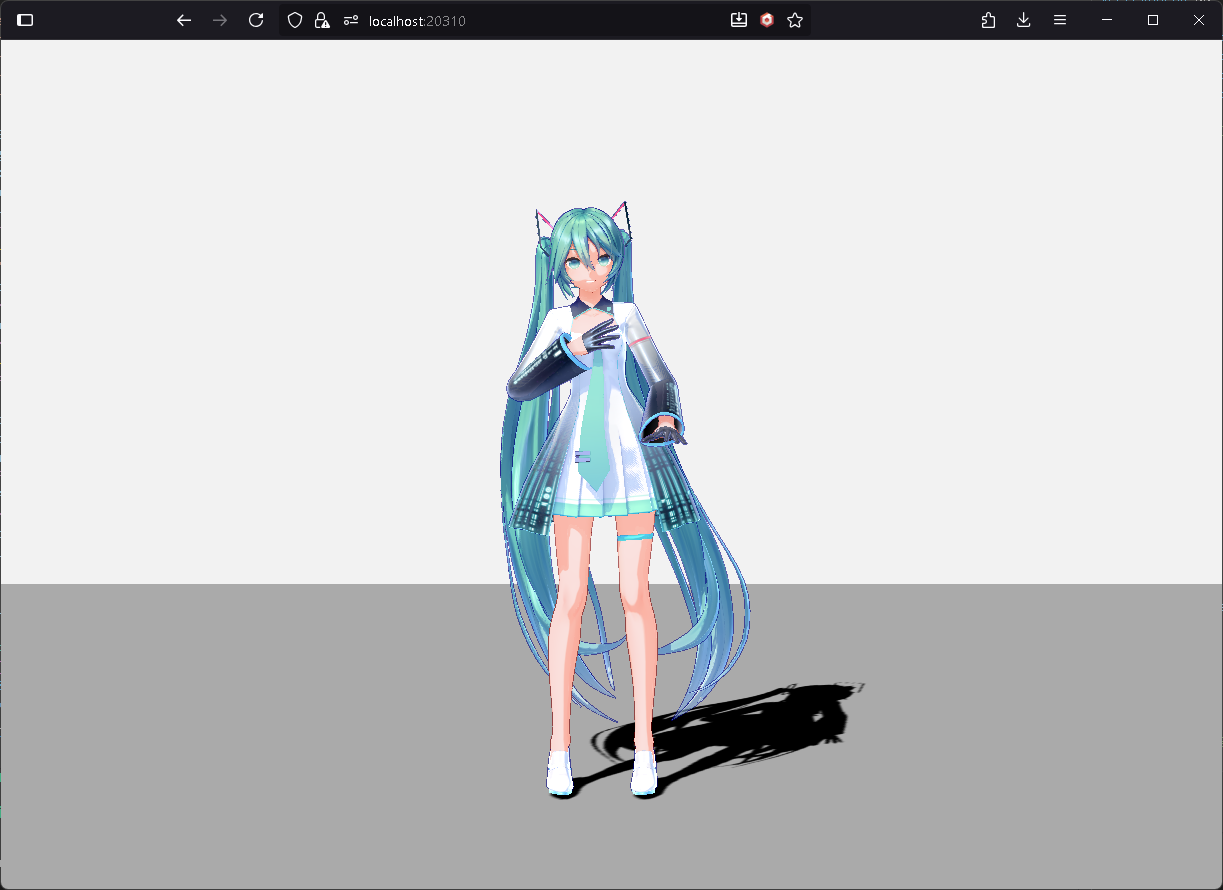

result

Physics simulation has now been added. You can see the MMD model's hair and clothing moving naturally.

Full code
src/sceneBuilder.ts
import "@babylonjs/core/Lights/Shadows/shadowGeneratorSceneComponent";
import "babylon-mmd/esm/Loader/pmxLoader";
import "babylon-mmd/esm/Loader/mmdOutlineRenderer";
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeCameraAnimation";
import "babylon-mmd/esm/Runtime/Animation/mmdRuntimeModelAnimation";

import type { AbstractEngine } from "@babylonjs/core/Engines/abstractEngine";
import { DirectionalLight } from "@babylonjs/core/Lights/directionalLight";
import { ShadowGenerator } from "@babylonjs/core/Lights/Shadows/shadowGenerator";
import { LoadAssetContainerAsync } from "@babylonjs/core/Loading/sceneLoader";
import { Color3, Color4 } from "@babylonjs/core/Maths/math.color";
import { Vector3 } from "@babylonjs/core/Maths/math.vector";
import { CreateGround } from "@babylonjs/core/Meshes/Builders/groundBuilder";
import { Scene } from "@babylonjs/core/scene";
import { MmdStandardMaterialBuilder } from "babylon-mmd/esm/Loader/mmdStandardMaterialBuilder";
import { VmdLoader } from "babylon-mmd/esm/Loader/vmdLoader";
import { StreamAudioPlayer } from "babylon-mmd/esm/Runtime/Audio/streamAudioPlayer";
import { MmdCamera } from "babylon-mmd/esm/Runtime/mmdCamera";
import type { MmdMesh } from "babylon-mmd/esm/Runtime/mmdMesh";
import { MmdRuntime } from "babylon-mmd/esm/Runtime/mmdRuntime";
import { MmdWasmInstanceTypeMPR } from "babylon-mmd/esm/Runtime/Optimized/InstanceType/multiPhysicsRelease";
import { GetMmdWasmInstance } from "babylon-mmd/esm/Runtime/Optimized/mmdWasmInstance";
import { MultiPhysicsRuntime } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/Impl/multiPhysicsRuntime";
import { MotionType } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/motionType";
import { PhysicsStaticPlaneShape } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/physicsShape";
import { RigidBody } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/rigidBody";
import { RigidBodyConstructionInfo } from "babylon-mmd/esm/Runtime/Optimized/Physics/Bind/rigidBodyConstructionInfo";
import { MmdBulletPhysics } from "babylon-mmd/esm/Runtime/Optimized/Physics/mmdBulletPhysics";

import type { ISceneBuilder } from "./baseRuntime";

export class SceneBuilder implements ISceneBuilder {
    public async build(_canvas: HTMLCanvasElement, engine: AbstractEngine): Promise<Scene> {
        const materialBuilder = new MmdStandardMaterialBuilder();
        const scene = new Scene(engine);
        scene.clearColor = new Color4(0.95, 0.95, 0.95, 1.0);
        scene.ambientColor = new Color3(0.5, 0.5, 0.5);

        const mmdCamera = new MmdCamera("MmdCamera", new Vector3(0, 10, 0), scene);

        const directionalLight = new DirectionalLight("DirectionalLight", new Vector3(0.5, -1, 1), scene);
        directionalLight.intensity = 1.0;
        directionalLight.autoCalcShadowZBounds = true;

        const shadowGenerator = new ShadowGenerator(1024, directionalLight, true);
        shadowGenerator.transparencyShadow = true;
        shadowGenerator.usePercentageCloserFiltering = true;
        shadowGenerator.forceBackFacesOnly = true;
        shadowGenerator.filteringQuality = ShadowGenerator.QUALITY_MEDIUM;
        shadowGenerator.frustumEdgeFalloff = 0.1;

        const ground = CreateGround("ground1", { width: 100, height: 100, subdivisions: 2, updatable: false }, scene);
        ground.receiveShadows = true;

        const audioPlayer = new StreamAudioPlayer(scene);
        audioPlayer.source = "res/private_test/motion/メランコリ・ナイト/melancholy_night.mp3";

        const vmdLoader = new VmdLoader(scene);
        vmdLoader.loggingEnabled = true;

        const [[mmdRuntime, physicsRuntime], mmdAnimation, modelMesh] = await Promise.all([
            (async(): Promise<[MmdRuntime, MultiPhysicsRuntime]> => {
                const wasmInstance = await GetMmdWasmInstance(new MmdWasmInstanceTypeMPR());

                const physicsRuntime = new MultiPhysicsRuntime(wasmInstance);
                physicsRuntime.setGravity(new Vector3(0, -98, 0));
                physicsRuntime.register(scene);

                const mmdRuntime = new MmdRuntime(scene, new MmdBulletPhysics(physicsRuntime));
                mmdRuntime.loggingEnabled = true;
                mmdRuntime.register(scene);
                mmdRuntime.setAudioPlayer(audioPlayer);
                mmdRuntime.playAnimation();
                return [mmdRuntime, physicsRuntime];
            })(),
            vmdLoader.loadAsync("motion",
                [
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_カメラ.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_表情モーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト_リップモーション.vmd",
                    "res/private_test/motion/メランコリ・ナイト/メランコリ・ナイト.vmd"
                ]),
            LoadAssetContainerAsync(
                "res/private_test/model/YYB Hatsune Miku_10th/YYB Hatsune Miku_10th_v1.02.pmx",
                scene,
                {
                    pluginOptions: {
                        mmdmodel: {
                            loggingEnabled: true,
                            materialBuilder: materialBuilder
                        }
                    }
                }
            ).then(result => {
                result.addAllToScene();
                return result.rootNodes[0] as MmdMesh;
            })
        ]);

        const cameraAnimationHandle = mmdCamera.createRuntimeAnimation(mmdAnimation);
        mmdCamera.setRuntimeAnimation(cameraAnimationHandle);
        mmdRuntime.addAnimatable(mmdCamera);

        {
            for (const mesh of modelMesh.metadata.meshes) mesh.receiveShadows = true;
            shadowGenerator.addShadowCaster(modelMesh);

            const mmdModel = mmdRuntime.createMmdModel(modelMesh);
            const modelAnimationHandle = mmdModel.createRuntimeAnimation(mmdAnimation);
            mmdModel.setRuntimeAnimation(modelAnimationHandle);
        }

        const info = new RigidBodyConstructionInfo(physicsRuntime.wasmInstance);
        info.motionType = MotionType.Static;
        info.shape = new PhysicsStaticPlaneShape(physicsRuntime, new Vector3(0, 1, 0), 0);
        const groundBody = new RigidBody(physicsRuntime, info);
        physicsRuntime.addRigidBodyToGlobal(groundBody);

        return scene;
    }
}
